Methods in Documentation

Converting units with the Revit API is quite simple. There are two methods in the UnitUtils class that we can use to convert TO/FROM internal units:

- UnitUtils.ConvertToInternalUnits(value, UnitTypeId)​
- UnitUtils.ConvertFromInternalUnits(value, UnitTypeId)

Here is a screenshot of the Syntax:

As you can see, you need to provide a value and select the appropriate unit from the UnitTypeId class.

Convert Units

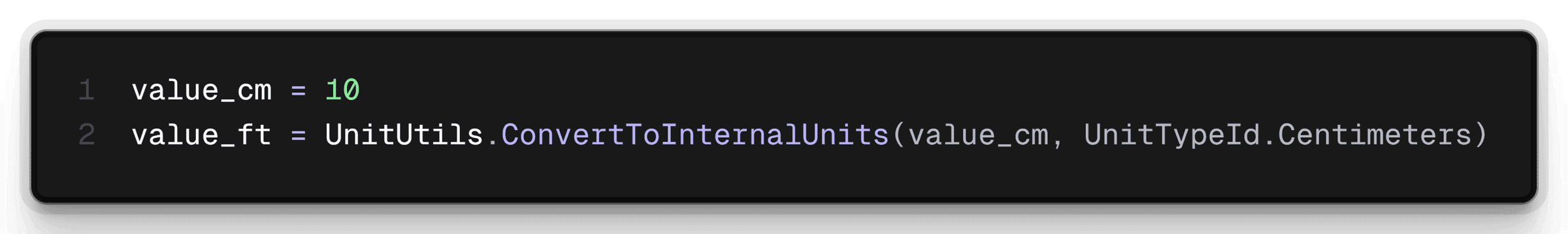

If you have a value in metric units and need to convert it into internal units, use ConvertToInternalUnits like this:

However, if you have a value in internal units (ft), then use ConvertFromInternalUnits like this:

That’s it. Just remember that the Revit API uses feet as its internal unit, so always select the correct unit.

UnitTypeId Class

UnitTypeId is a class in Revit APi that contains identifying units of measurement. It includes a long list of units, but you’ll only need a handful, such as Meters, Centimeters, SquareMeters, and so on...

Here is a screenshot from the Docs:

P.S.

If you get incorrect values in the Revit API, make sure you have the right units before you start debugging.

When I started, I fell into this trap and spent hours fixing code that didn't need fixing. I just had to use the correct units.

So, watch out.
